Trackway Medium Duty Ground Protection Mats

Designed for pedestrian and medium sized vehicular traffic, our medium duty ground protection mats are a fast-to-deploy, versatile trackway system.

  • Temporary roadways
  • Pedestrian walkways
  • Event Flooring

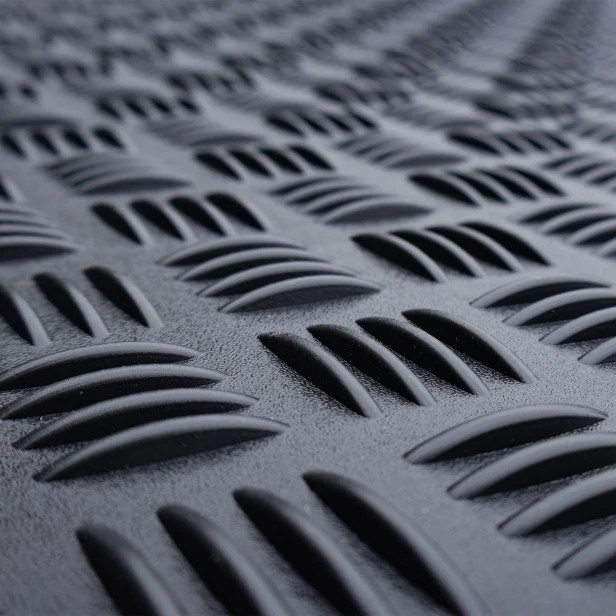

Built from 100% recycled high-density polyethylene, our medium duty mats are perfect for providing access to challenging sites that require a durable, flexible solution. Constructed with a double-sided chevron finish, you can create safe pedestrian walkways or stable conditions for vehicle access while protecting sensitive grounds like event sites, heritage sites, and public or privately owned properties.

Build your quote

Reminder to Customers: Our HDPE ground protection mats must not be used to cross trenches as they will bend or break, incurring replacement charges.

Please note: Necessary support products may be added to your quotation based on your specific project requirements and our team’s recommendations.

Technical Specifications

Dimensions
2.44m x 1.22m (8ft x 4ft)
Panel Thickness
12.7mm
Coverage Per Panel
2.98m²
Weight per panel
39.8kg
Material
High-Density Polyethylene (HDPE)
Material Source
100% recycled plastic
Axle Load Capacity
5-tonne per axle
Surface Finish
Pedestrian/ Vehicular
Flammability Resistance
UL94 HB Rating

Downloads

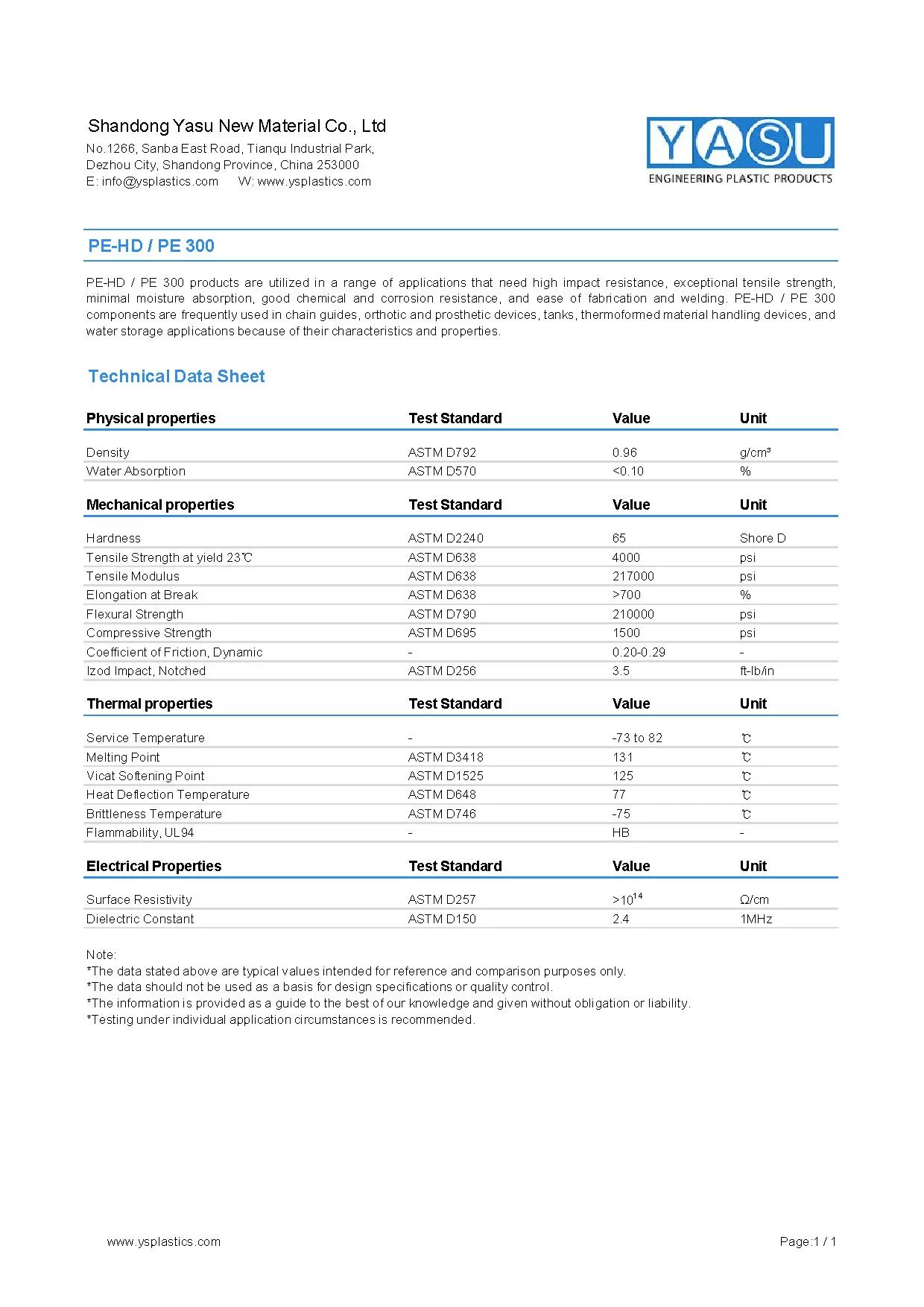

Material Datasheet
Trackway Brochure

You find a route, we’ll find a way!

Wherever your A and wherever your B, our temporary roads get you where you need to be.

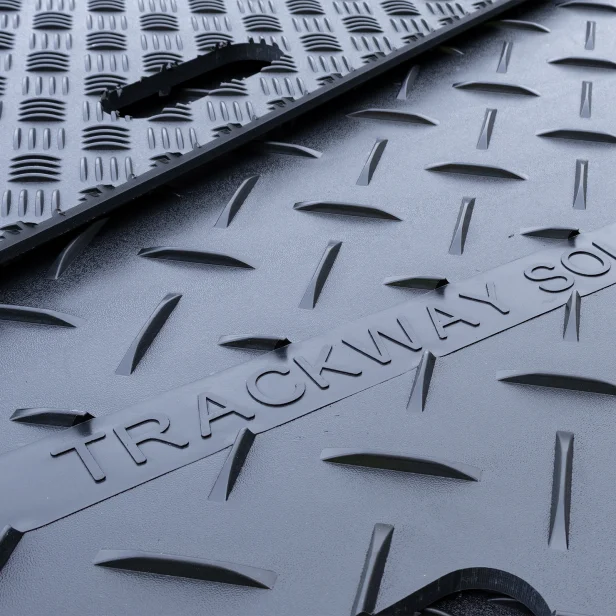

We’ve worked with manufacturers to make sure we have the best panels on the market. On one side panels are cross-serrated while the other side is heavier duty for extra traction on slopes or for use with heavier plant. We simply choose the most appropriate side for each stage of a project. Tough internal connectors provide a strong, flat surface and all panels can be cross-bonded to create an extremely robust trackway.

Call our expert team: 0845 241 8555

Manufactured from recycled, high-density polyethylene (HDPE), our black ground mats feature natural UV resistance for long-term outdoor durability.
Capable of supporting variable loads up to 25 tonnes depending on the underlying ground conditions. For any projects involving gross vehicle weights exceeding 25 tonnes, please consult our team for specialist technical advice.

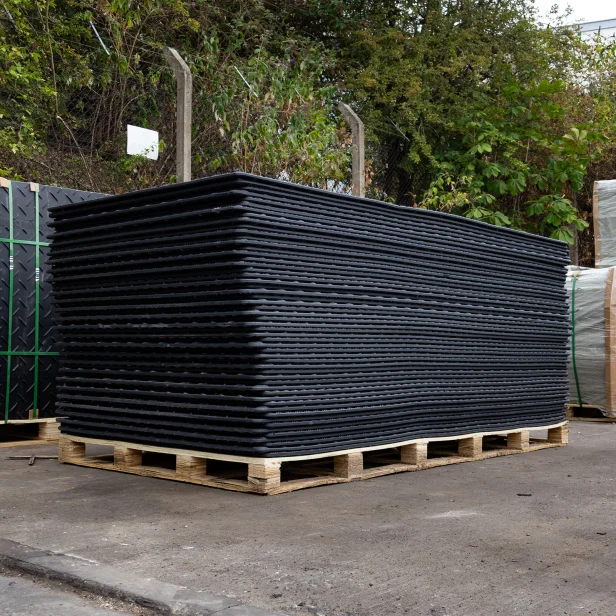

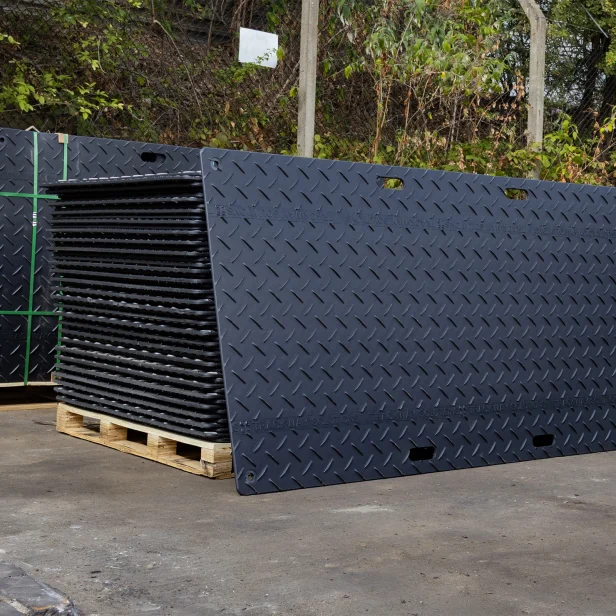

Engineered for immediate deployment with no prior ground preparation required. These versatile mats perform reliably over grass, gravel, soil, concrete, mud, and sand, and can be neatly stockpiled in stillages when off-hire.

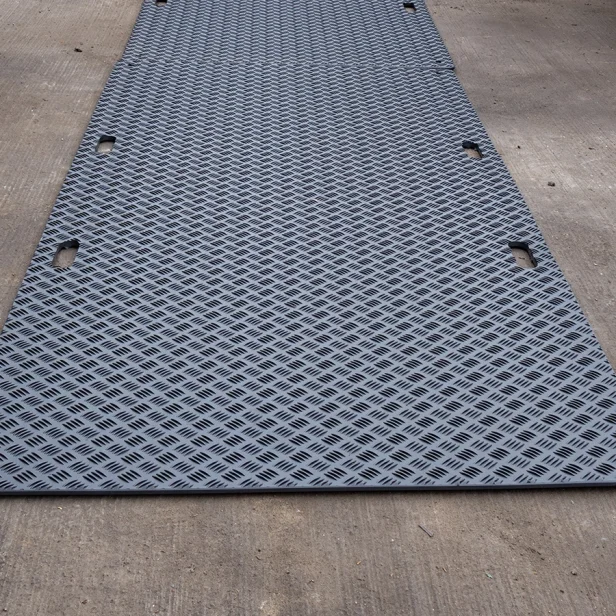

Featuring integrated connection holes along the corners and edges to easily build multi-directional roadways of any configuration. The panels secure seamlessly using standard metal joining irons, requiring no specialist tools for installation.

Useful Product Information

When you need to maintain safe, reliable access across soft or vulnerable ground without the logistical footprint of heavy aluminium systems, our Medium Duty HDPE mats are the definitive industry standard. Designed to eliminate the risk of vehicles bogging down in unpredictable UK weather, these mats protect sensitive turf, public parks, and historic grounds from severe rutting and soil compaction. Because each 2.44m x 1.22m mat weighs just 39.8kg, they can be easily manually handled and deployed swiftly by a two-person team, completely removing the need for specialist crane hire or heavy lifting equipment on-site.

  • Light, Yet Exceptionally Strong: At only 39.8kg per mat, they are light enough for rapid manual installation, yet robust enough to support medium vehicular traffic and distribute axle loads safely.
  • Ultra-Durable HDPE Construction: Engineered from 100% recycled, high-density polyethylene, these mats are completely waterproof, chemical resistant, and naturally UV-stabilised to survive the harshest UK winters.

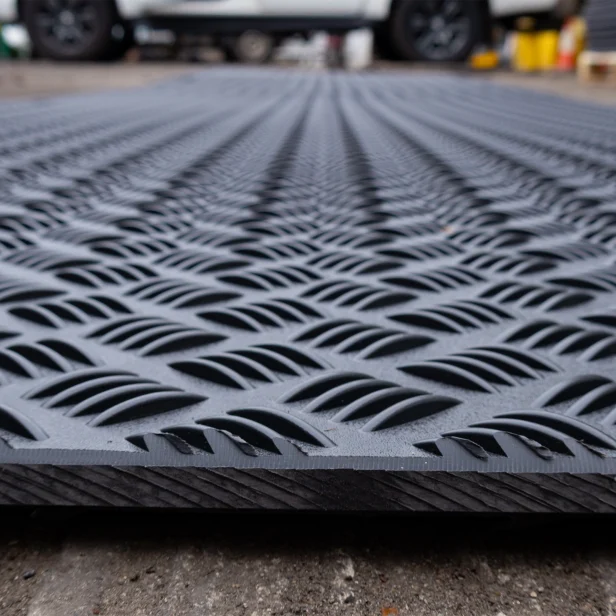

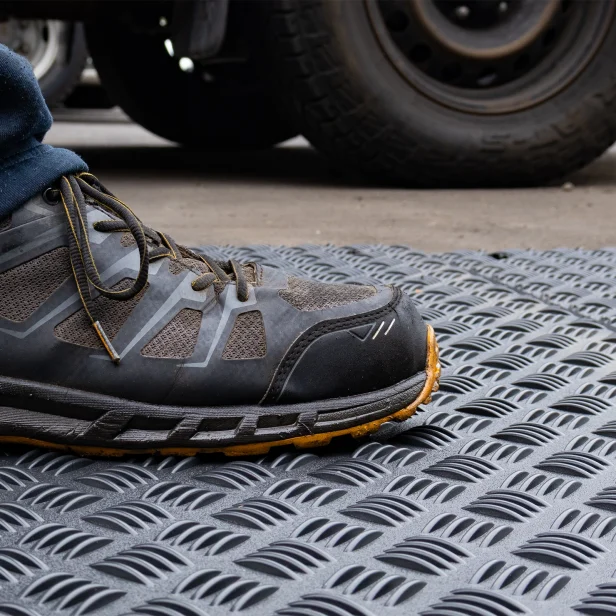

  • Double-Sided Chevron Grip: Features an aggressive, non-slip tread pattern on both sides to guarantee maximum tyre traction for vehicles and secure, trip-free underfoot stability for pedestrians.
  • Temporary Car Parks & Unit Bases: Instantly transform wet, muddy fields into stable, slip-resistant parking zones for ground crews, visitors, and light-to-medium vehicles.
  • Safe Pedestrian Walkways: Form clearly defined, mud-free footpaths across event arenas, construction site compounds, and public spaces.
  • Heritage & Turf Protection: Provide a protective shield over pristine lawns, paving, and asphalt, ensuring zero ground reinstatement costs once the project is completed.
  • Light-to-Medium Haul Roads: Create multi-directional temporary roadways capable of handling vans, telehandlers, utility trucks, and plant machinery.
  • Outdoor Events & Festivals: Ensure compliance and safety for public foot traffic and festival logistics across parklands and greenfield sites.
  • Film & TV Production: Establish reliable location unit bases and camera tracks on historic estates and remote outdoor sets without damaging the landscape.
  • Facility Management & Utilities: Enable rapid-response maintenance crews and utility vehicles to access remote infrastructure safely over soft agricultural land.
  • Construction & Civil Engineering: Maintain clean, safe site access paths for ground investigation works, sub-stations, and lighter construction compounds.

So far, our experience with trackway has been a good one, positive site meetings and good communications.  Works have now been planned in, and we look forward to working alongside Trackway solutions to deliver our next project safely and successfully.
Alan Amco Giffen

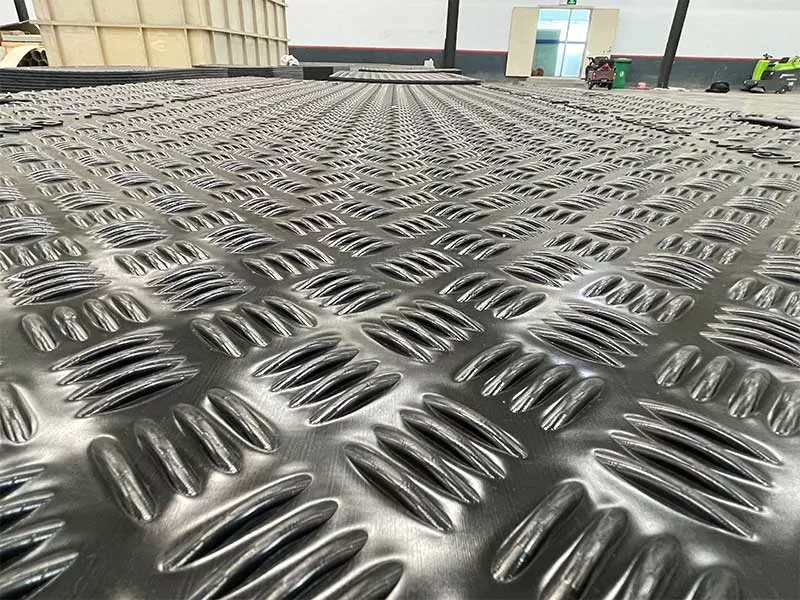

Trackway medium duty ground protection mats
